If you have previously saved a map view (an area of the map you focus in on frequently with a chosen basemap) but would like to change it, you can do so as follows:

Note: See Saving a Map View for details on how to create a map view.

  1. On the sidebar menu on the left, click .

    The Tracking screen will open and display the assets of the group you have selected in the Group Chooser. (See Choosing a Group to View Globally for details on how to change your chosen group.)

  2. On the map toolbar at the top right, click .

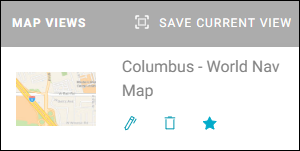

    The Map Views widget will display all the map views you have previously saved.

  3. To just change the view's name, follow these steps:
    Note: To change its zoom level, location, basemap, or map layers, skip to step 4.
    1. Click  below the name of the view.

    2. In the Edit Map View Name field, select the current name and then type the new name you would like to use for the map view.

    3. Click Done.

      Going forward, you can quickly have the map focus in on your chosen favorite area by clicking its new name in the Map Views widget on the Tracking screen. (See Launching a Map View for more details.)

  4. To make other edits to the map view, follow these steps:
    Note: You can't make some changes to the existing view; instead, you can launch it, make your modifications, save it as a new view, and then delete the original.
    1. Click the view's name in the Map Views widget.

      The map will zoom in on that area and switch to its basemap and map layers (if needed).

    2. To change the region displayed by the view, click and drag the map and zoom in and out as needed using and  at the bottom right of the map. (Take up the whole of the visible map area with the new area to be included in the view.)

    3. To use a different basemap for the view, follow these steps:

      1. Click  on the top-right toolbar.

        The Basemaps widget will appear.

      2. Click the new basemap you want for the view.

    4. To change the map layers displayed for the view (such as Charge Stations, Traffic, or one of your organization's custom map layers), follow these steps:

      1. Click  in the top-right toolbar.

        The Map Layers widget will appear. (See Navigating the Tracking Screen's Map for information about the available map layers.)

      2. Select the toggles for the new map layers to include in the view. ( means selected, and  deselected.)

      3. Deselect the toggles for any map layers you don't want for the view.

    5. Click  in the top-right toolbar.

      The Map Views widget will display your saved views again (including the one you are "editing").

    6. Click Save Current View at the top right.

    7. In the Name the Custom View field, type a different name for the map view than the one you've been currently using.

    8. Click Done.

      Now, you'll have both the original view and the one with your edits.

    9. If you no longer need the original one, you can delete it as shown in Deleting a Saved Map View.

PRO TIP

You can make a saved map view your default view for the Tracking screen by clicking  under its name in the Map Views widget. ( will become .)

Now, when you first log in to the CalAmp application and launch the Tracking screen, your starred map view will be displayed automatically.

You can click  to no longer have the view set as your default.
